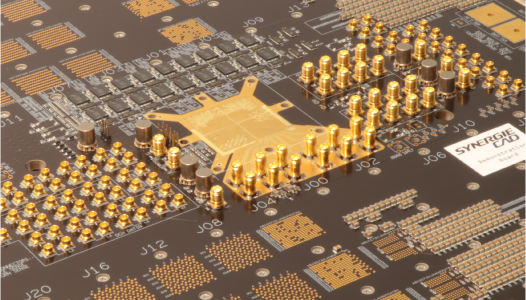

ELECTRONIC ENGINEERING

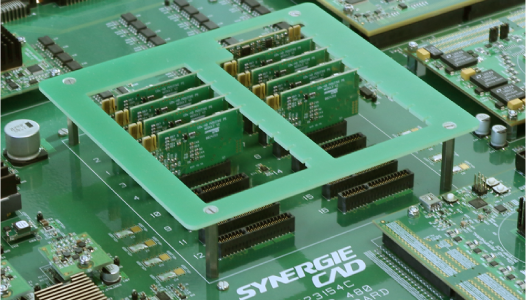

As an exemple, Synergie Cad achieved a significant milestone when, a few years ago, it developed and completed a full line of Burn-In systems.

Combined with user-friendly and highly programmable burn-in drivers, our Burn-In systems integrate most functions traditionally found in expensive ATE equipment at a fraction of the cost.

Synergie Cad achieved a significant milestone when, a few years ago, it developed and completed a full line of Burn-In systems.

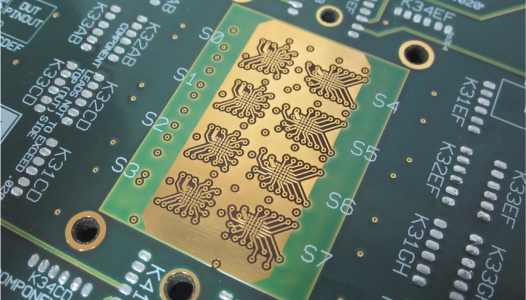

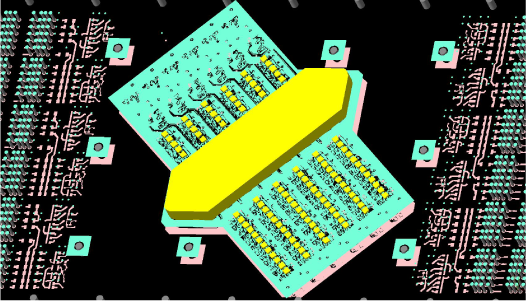

Design Engineering Layout & Simulation
The PCB designers are in a position where they are having to find the best solution which meets all the requirements of the Test Platform, Test Engineers, Manufacturers and Assemblers.

Combined our design engineers have a broad background and experience in RF Microwave, Electronics, Chemistry, Mechanical engineering and PCB Layout. uBGA, RF, High Speed Digital, Analog, Mixed Signal design Complex board builds, blind, buried, micro vias, multiple laminations and combined materials. Impedance controlled:
Differential, Single ended, Stripline and Surface Microstrip, Embedded Microstrip. Mechanical: Sockets, Shielding, Systems, Custom Stiffeners, Cables.

ANSYS HFSS software is the industry-standard simulation tool for 3-D full-wave electromagnetic field simulation and is essential for the design of high-frequency and high-speed circuit design. Provides accuracy for the design of high- speed circuits, test sockets, PCB interconnects, high-frequency components and RF/microwave components Evaluate signal quality, including transmission path losses, reflection losses due to impedance mismatches, parasitic coupling and radiation. Visualize 3-D electromagnetic fields. ANSYS SIWave to analyse complete designs (includes multiple, arbitrarily shaped power/ground layers, vias, signaltraces and circuit elements). Perform complete signal-integrity and power-integrity analysis from DC to beyond 10 GHz.
Engineering and Test Solutions
Synergie Cad Group offers test software development services in addition to the test hardware design and manufacture. Supported by an internal team of Engineers we can provide Test program solutions for the leading Automated Test Equipment.

Utilising both internal test platforms and 3rd party ATE we can support both Final Assembly and Wafer Probe test program development, characterisation, qualification read-point testing as well as platform and pattern conversion.

Cooperation internally between Design, Test and Manufacturing allows us complete control over design validation and Test Production improvements.
We can support new product introduction, production yield improvement, offshore transfer or legacy testing with offices based in Europe, USA and ASIA.

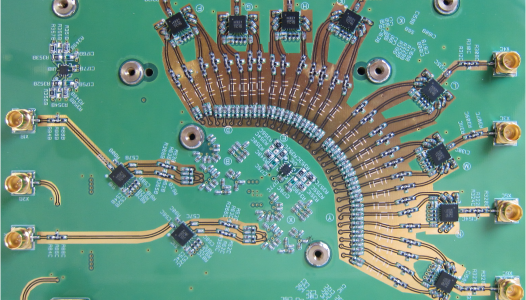

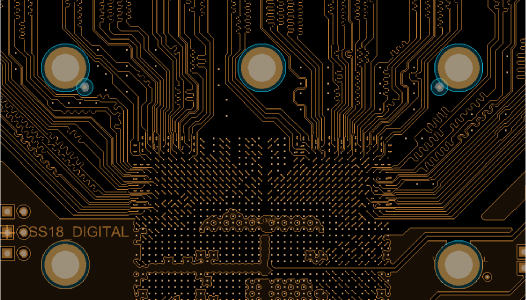

Conception and Drawing
Synergie Cad offers design experience that is tailored, but not just limited, to semiconductor interfaces where many designs are made for original OEM's.

From schematic capture to final layout, our design engineers will work closely with the customers to ensure that the objectives of each project are met.

With more than 70 design stations using CADSTAR, MENTOR, CADENCE,and PADS utilised by Synergie Cad and with our project/design engineers located in France, Germany, Morocco, Philippines, Singapore, South Korea, UK, and USA we have the possibility to offer on site design services and continual work on time critical projects.

As technology advances continue in the electronics industry, the need for a change in the architecture of PCB’s is always on the horizon. The PCB has to adjust and take into account the continually changing functionality of integrated devices as well as recent packaging trends.

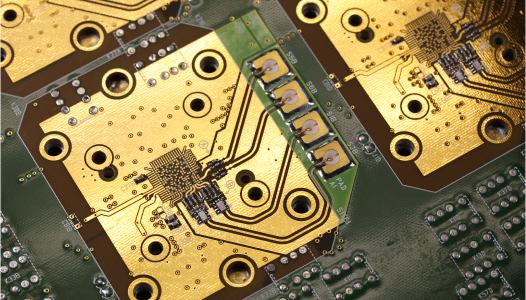

Synergie Cad Capabilities
Synergie Cad can manage in-house complete Design and Manufacturing processes, coordinated by Internal CAM teams working in full Synergy, guaranteeing:
- Continuous Process Optimization
- Embedded Quality Improvement
- Application Performance enhancement
- Overall Cost of Test reduction
- Flexibility in activity planning with respect to Customers requirements

Synergie Cad capabilities are:
- Up to 60 multi-layers
- Thickness: up to 7.0mm
- Wide area PCB capability: 750mm x 580mm
- Planarity guaranteed through CIC Technology
- Dry Film exposure (Clean Room rated 1,000)
- Laser Direct Imaging
- Laser drilling
- Micro BGA boards down to 250µm pitch
- Blind and buried vias capability
- Hole diameter 75µm
- Impedance Control

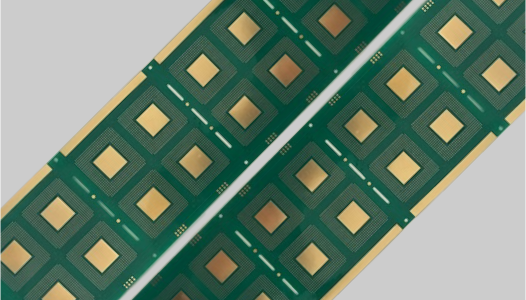

- Advanced fine pitch PCB interposers

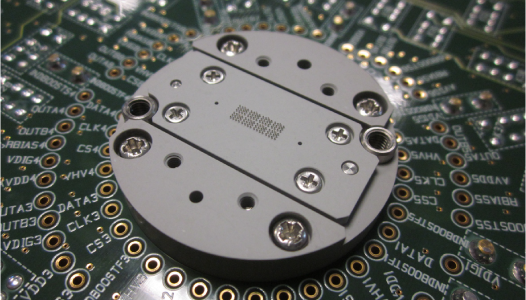

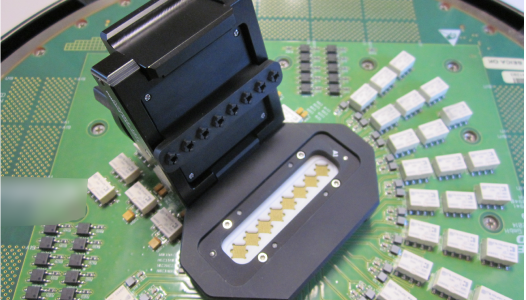

Verti-B
Technology based on circular Micro Spring using direct attach PCB.

Fully customizable and Hand-Lid socket adaptable.

Verti-B is the solution for all your testing needs: Multi-site, RF, Kelvin and High/Low Temperature.

Easy to install and maintain, Verti-B is the best choice for advanced WLCSP probing.

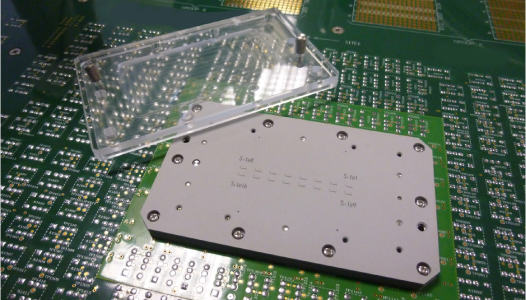

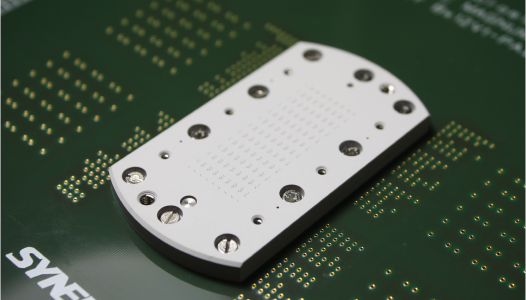

Verti-P
This technology has been developed with the support of key customers and is designed to offer high performance.

Verti-P uses a Micro Spring Pin design with conical TIP as its contact element.

This feature delivers the necessary mechanical compliance for probing and minimizes PAD damage.

High test parallelism, Verti-P has the ability to test more than 256 dies simultaneously.

Where probe performance is influencing costs more than ever, Verti-P is lowering test time and costs for chipmakers worldwide.

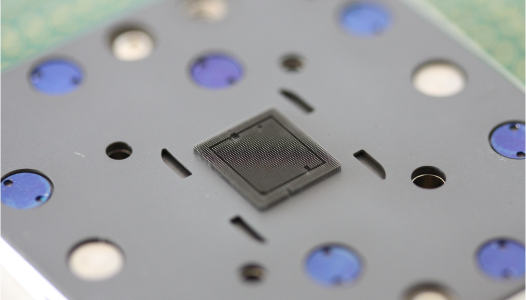

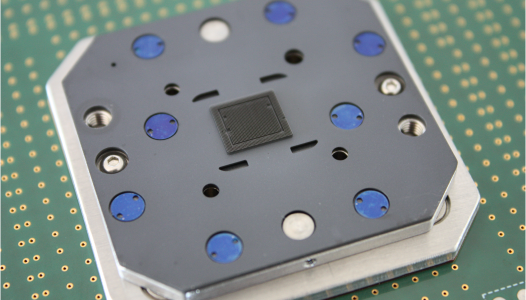

Verti-M
The Verti-M solution has an excellent mechanical stability at high temperature which offers you an extremely accurate positioning and alignment.

Synergie Cad Probe is proud to announce the VERTI-M® technology.

This innovation resides in the pin design that permits a wide range of testing solutions.

Three different diameters enable high current testing, high frequency and customized Gram force.

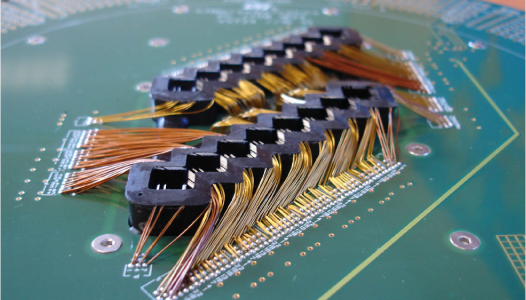

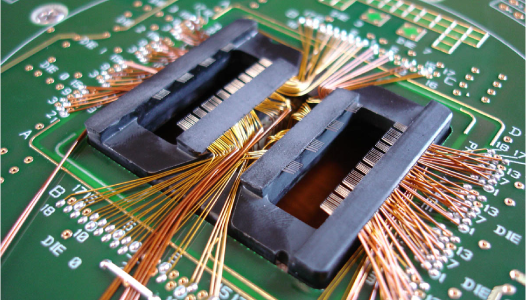

Cantilever
Synergie Cad Probe Cantilever probe cards are engineered, designed and manufactured using the latest equipment for accurate probe placement, alignment and planarity.

Synergie Cad Probe's highly skilled manufacturing team brings years of probe card building experience to the products:
- Standard Cantilever
- Multi-Die Cantilever
- Imager Cantilever
- Memory Cantilever
- Windowless Cantilever
- Direct docking Cantilever

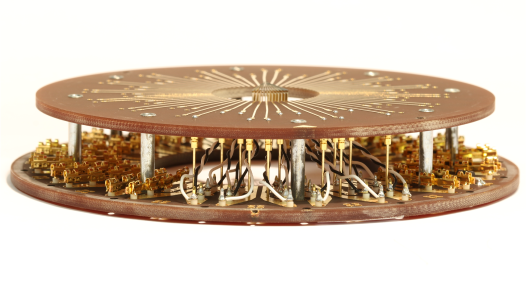

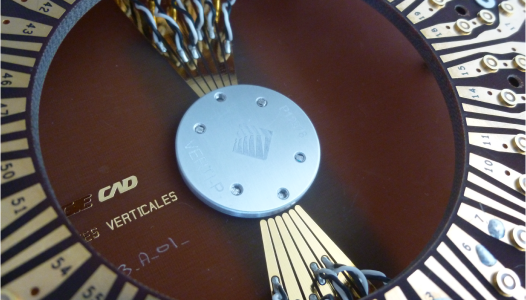

Parametric
Fully customizable, Synergie Cad Group team became expert to provide you the best solution in this technology.

Contact us for custom specifics applications.

For many years now, Synergie Cad Group has developed and improved parametric probing.

Improvements made to reach new limits in term of Low Leakage.

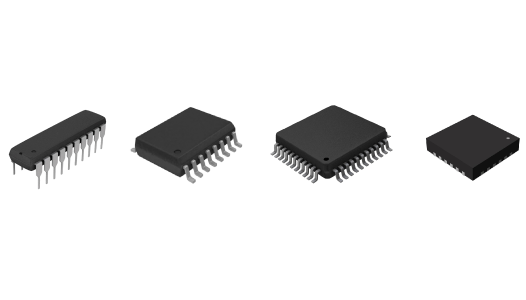

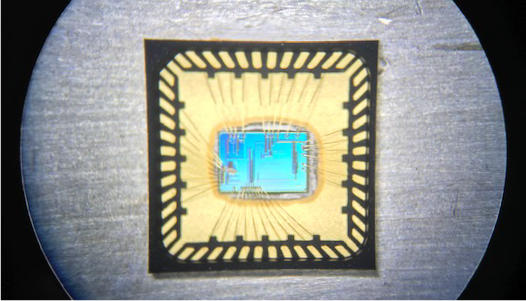

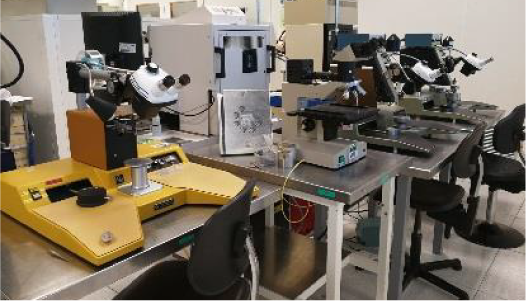

Packaging & IC assembly
Our European Packaging line, located in Toulouse, allows to deliver fast-run prototypes or small series in following packages :
Plastic moulded : QFN’s, SOIC, QFP’s, DIP’s
Air cavity / Premoulded plastic : QFN’s, SOIC’s, QFP’s, DIP’s …
Ceramics (ceramic or metal lid) …
Metal packages : TO’s …
Organic packages: BGA, LGA
An investment plan is on-going to drive this line towards mid-series for plastic package. This should be effective by Q2-2019.

Larger series as to offer large portfolio and competitive prices are handled through our Top3 OSAT partnership. This allows us to offer a wide spectrum of standard and custom packaging solutions, including wafer bumping.

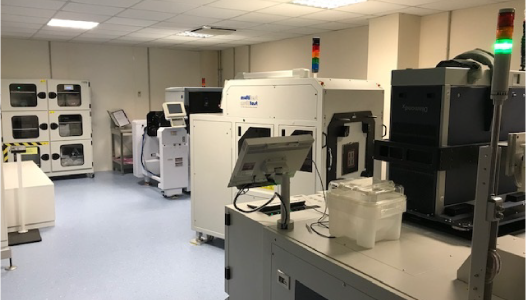

Test Developpment & Production
With our In-House Advantest, Teradyne, and Xcerra test platforms, complemented with 6 / 8 / 12in.
Probers or Multitest handler, we develop complete test solutions (hardware & software), test hardening, test platform transfers, or production testing in our own european test floor in Toulouse or at Asian OSAT partners.
Our competences stand in DIGITAL, MIXED-SIGNAL & ANALOG, RF & MMW (up to 100GHz). We also have experience in CMOS sensors/imagers production testing.


TESTERS
Advantest C-Class V93K-PS1600
Teradyne J750

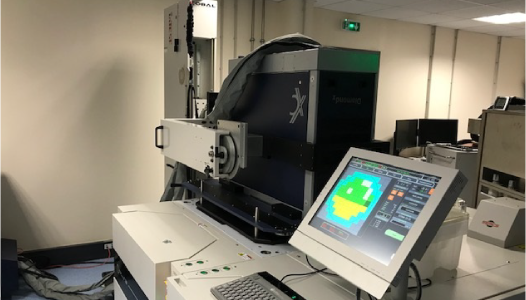

Xcerra Diamond-X
Xcerra Sapphire

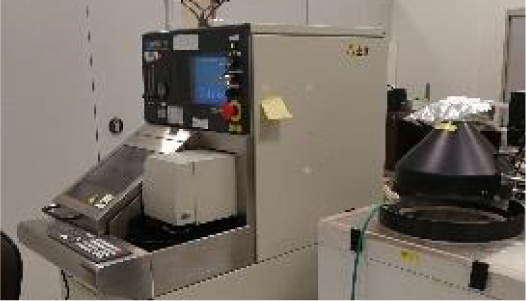

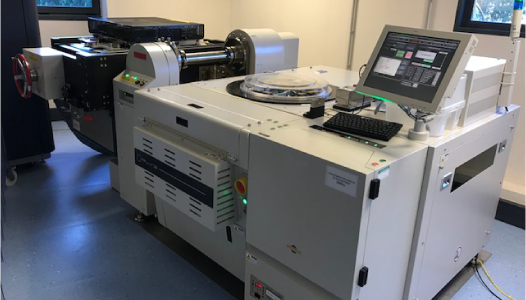

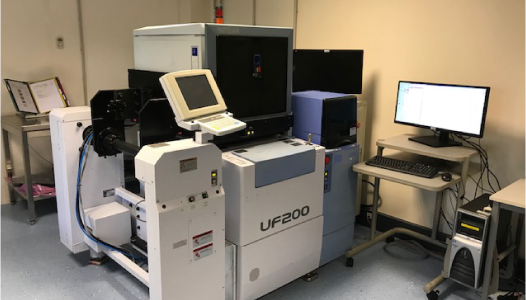

PROBERS
Semics Opus3 6 / 8 / 12 inches probers
1 room temperature
1 tri-temp -55°C / +200°C
UF300 / EG4090 8in. Probers (dual temp)

HANDLER

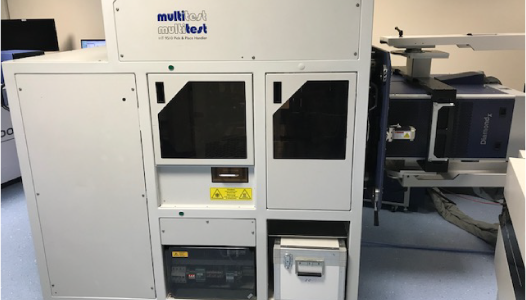

Multitest MT9510
Thermotreams
Temptronic 4010A -65°C / 200°C
Temptronic 4310A -70°C / 200°C

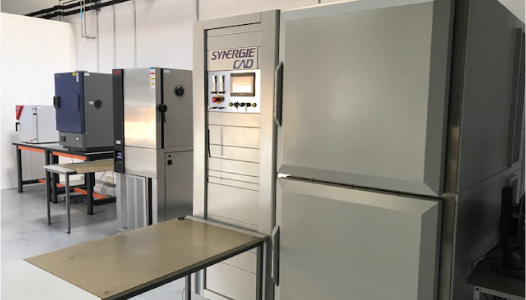

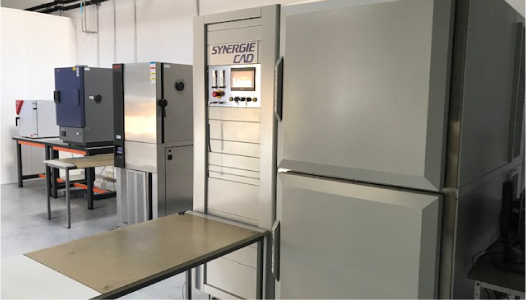

Reliability Laboratory
Our Reliability Laboratory, located in Toulouse, offers capabilities for reliability stresses such as :
- HTOL / LTOL

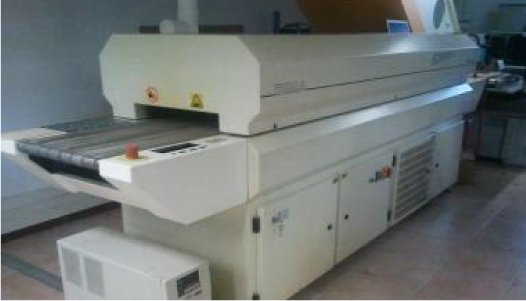

- I.R. Reflow, MSL preconditionning
- Thermal Cycling (VRT…)
- Humidity Storage (THNB, THB, …)
- Humidity Stress (HAST, uHAST, …)
… including development and fabrication of reliability boards in our Group facilities (Carros-France).

We also access to ESD (HBM, MM, CDM) and Latch-Up capabilities ; we may also specify correct test conditions for you.

Larger techniques and equipments may be accessed through external partners, such as irradiation stresses (doses, SEE) or mechanical oriented tests (vibrations, acceleration …)….
Turn-Key Supply Chain
With our In-House equipments and competences, we provide Semiconductors industrialization, qualification, and production services to our Customers.

Prototyping of small or medium series will be handled from our internal Hub in Toulouse (France), while larger volumes will be manufactured through partnership with our Tier1 OSAT teammate.

Customers have access to our services portfolio ‘à la carte’, i.e., they may select / pick what they need.

We may deliver Turn-Key Supply Chain solutions from Wafers start to Finished Goods deliveries.

We may also support our Customers with ‘à la carte’ engineering or production services such as :
- Test solution development and transfer to production sites
- Reliability tests
- Packaging of fast run prototypes or production series
- Production testing and sustaining

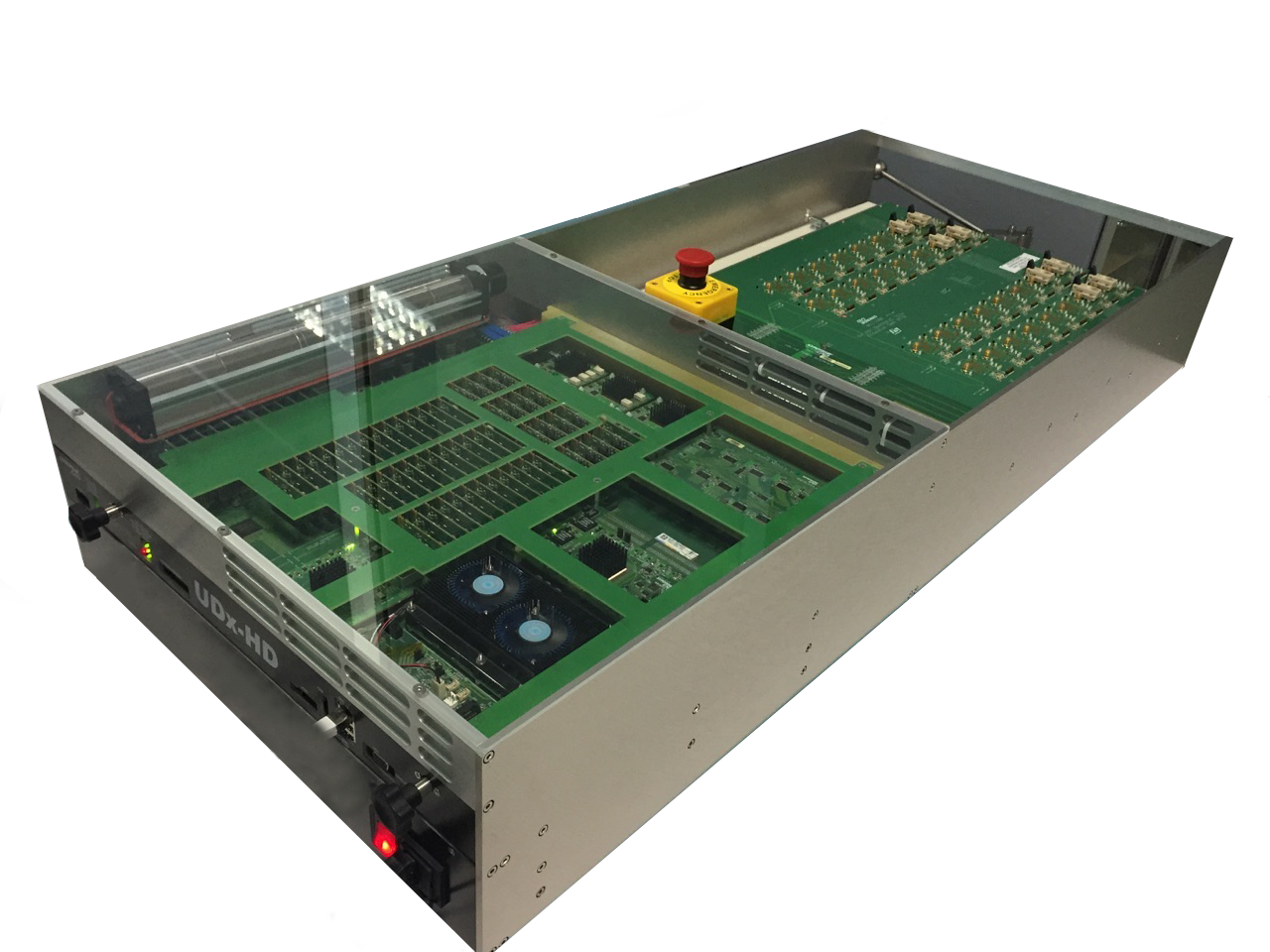

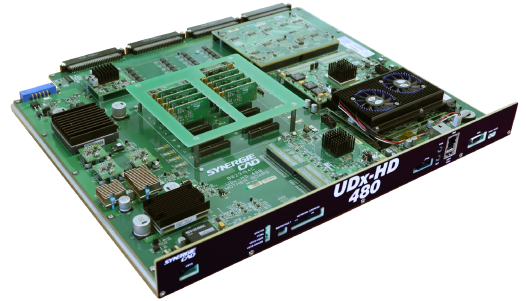

UDX
The solution for Product, Application and Reliability Engineers
Full software and hardware configurability for extremely wide device coverage

Extremely versatile
- Design Validation
- Characterization
- Engineering
- Quality & Reliability
- Burn-In

Wide application coverage
- Medium power logic devices
- Memory devices (high performances to satisfy DRAM power constraints)
- FPGA, ASIC, and Mixed Signal devices

High performance
- Extensive data logging with capability to perform accurate analysis of test results
- Enhanced testing capability relying on powerful embedded logic
- Analog Waveform Aquisition
- Synchronised Analog/Digital Monitoring

Investment protection
- Modular and scalable HW
- Open SW environment (plug-in-based)
- Remote system management
